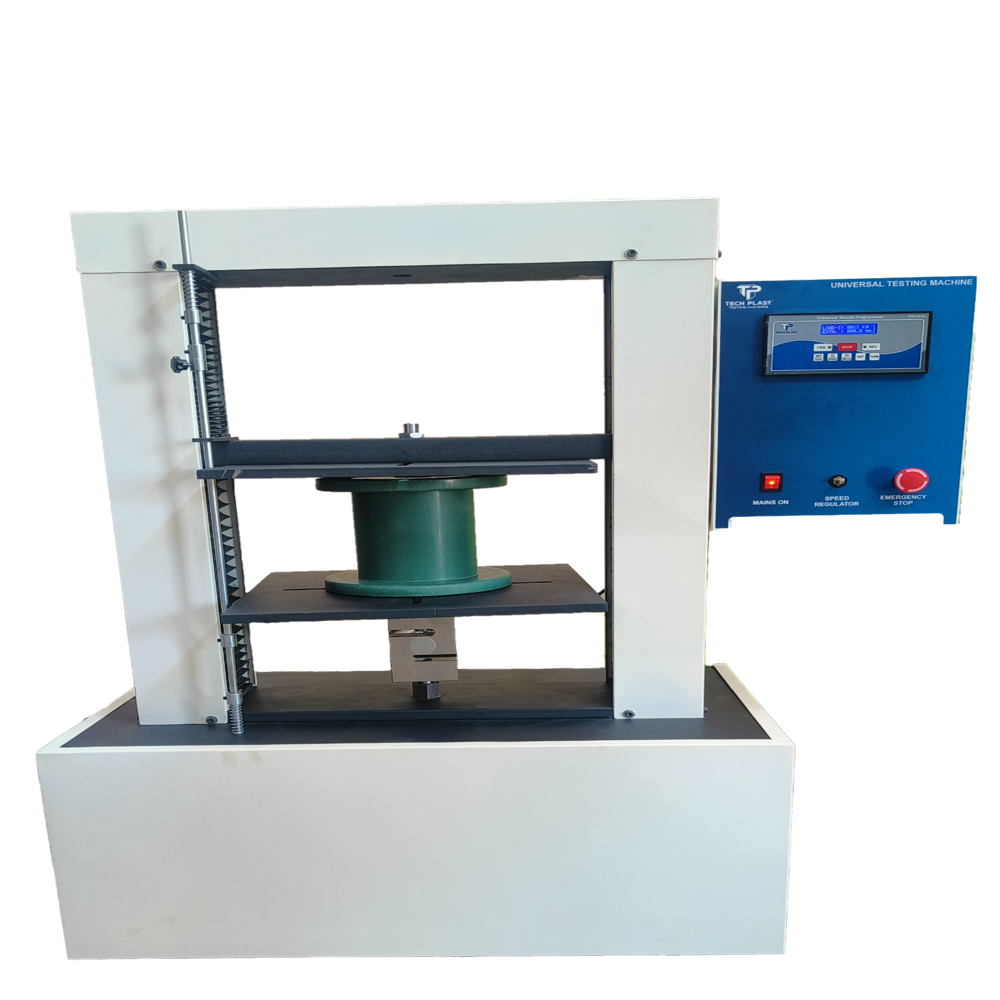

Spool Strength Tester

Name: Spool Strength Tester
Brand: TEXCARE INDUSTRIES
Price: 196000.0 INR
Availability: InStock

Price 196000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Spool Strength Tester Specification

Temperature
5C to 45C

Specimen Size
Compatible with Standard Yarn/Spool Diameter

Test Material
Yarn, Thread and Spool Cores

Humidity
Ambient, up to 85% RH

Port Size
Standard

Test Range
0 - 40 kgf

Number of Specimens
Single Specimen at a time

Type
Digital Spool Strength Tester

Material
Mild Steel and Glass

Power
220V AC, 50Hz

Power Source
Electric

Dimension (L*W*H)
530 x 560 x 300 mm

Weight
Approx. 40 Kg

Usage
Laboratory, Industrial Testing

Application
Testing Strength of Spools and Yarn Packages

Load Cell Capacity
Up to 40 kgf

Accuracy
1% of Reading

Accessories
Set of Standard Fixtures for Different Spool Sizes

Finish
Powder Coated

Safety Interlock
Emergency Stop Button

Calibration
Manual and Automatic Available

Control
Microprocessor Based Control System

Display
Digital LCD Display

Spool Strength Tester Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Month

Delivery Time
10 Days

Spool Strength Tester About

Spool Tester

The Spool Tester is a precision testing instrument designed to evaluate the strength, durability, and performance of spools used in textile, yarn, filament, and wire industries. It helps manufacturers ensure that spools can withstand operational loads, winding tension, and handling stress during storage and transportation.

Built with a rigid frame and high-quality components, the spool tester provides accurate and repeatable test results under controlled conditions. The machine allows easy mounting of different spool sizes and applies uniform load or rotation to simulate real-world working conditions.

Its user-friendly operation and reliable performance make it ideal for quality control laboratories as well as production floor testing.

Key Features:

Tests strength and durability of spools
Suitable for various spool sizes and materials
Robust construction for long-term use
Accurate and repeatable test results
Easy operation and maintenance

Applications:

Textile and yarn manufacturing units
Filament and fiber industries
Wire and cable manufacturing
Quality control and R&D laboratories
Packaging and material handling industries

Advanced Digital Precision for Reliable Testing

Equipped with a digital LCD display and microprocessor-based control system, the Spool Strength Tester offers accurate strength measurements for spools and yarn products. With auto and manual calibration, users can ensure dependable results every time. The emergency stop button and sturdy powder-coated frame provide additional safety and longevity, making it ideal for both frequent laboratory and rigorous industrial testing environments.

Adaptable to Various Yarn and Spool Types

Supplied with a set of standard fixtures, this device accommodates a wide range of spool diameters and types, enabling single-specimen testing across common yarns, threads, and spool cores. The tester's compatibility with standard laboratory conditions (humidity up to 85% RH, temperature 5C-45C) ensures versatility for diverse material testing in research, manufacturing, and quality assurance applications.

FAQ's of Spool Strength Tester:

Q: How does the Spool Strength Tester measure the strength of yarn or spools?

A: The tester uses a high-precision load cell to apply force to a single spool or yarn specimen, measuring the maximum load it can withstand via a digital LCD display. Its microprocessor-based system ensures measurements are highly accurate and consistent.

Q: What calibration options are provided for this strength tester?

A: Both manual and automatic calibration modes are available, allowing users to maintain optimal accuracy depending on their laboratory standards or specific testing protocols.

Q: When should I use the emergency stop feature?

A: The emergency stop button is used whenever unsafe conditions or equipment malfunctions are detected during testing. Pressing this button immediately halts the operation to protect users and prevent damage to materials.

Q: Where is the Spool Strength Tester typically used?

A: This device is designed for use in laboratories and industrial testing facilities, particularly by textile manufacturers, researchers, service providers, and quality assurance departments.

Q: What is the process for testing a spool or yarn using this equipment?

A: First, select the appropriate fixture for your specimen and secure it in the tester. Configure the settings as desired, calibrate the device, and initiate the test. The tester measures the force applied until the specimen fails, displaying results on the digital screen.

Q: How does using this tester benefit my quality control process?

A: Accurate and reliable strength measurement helps ensure product consistency, compliance with industry standards, and identification of weak batches, ultimately improving material reliability and customer satisfaction.
